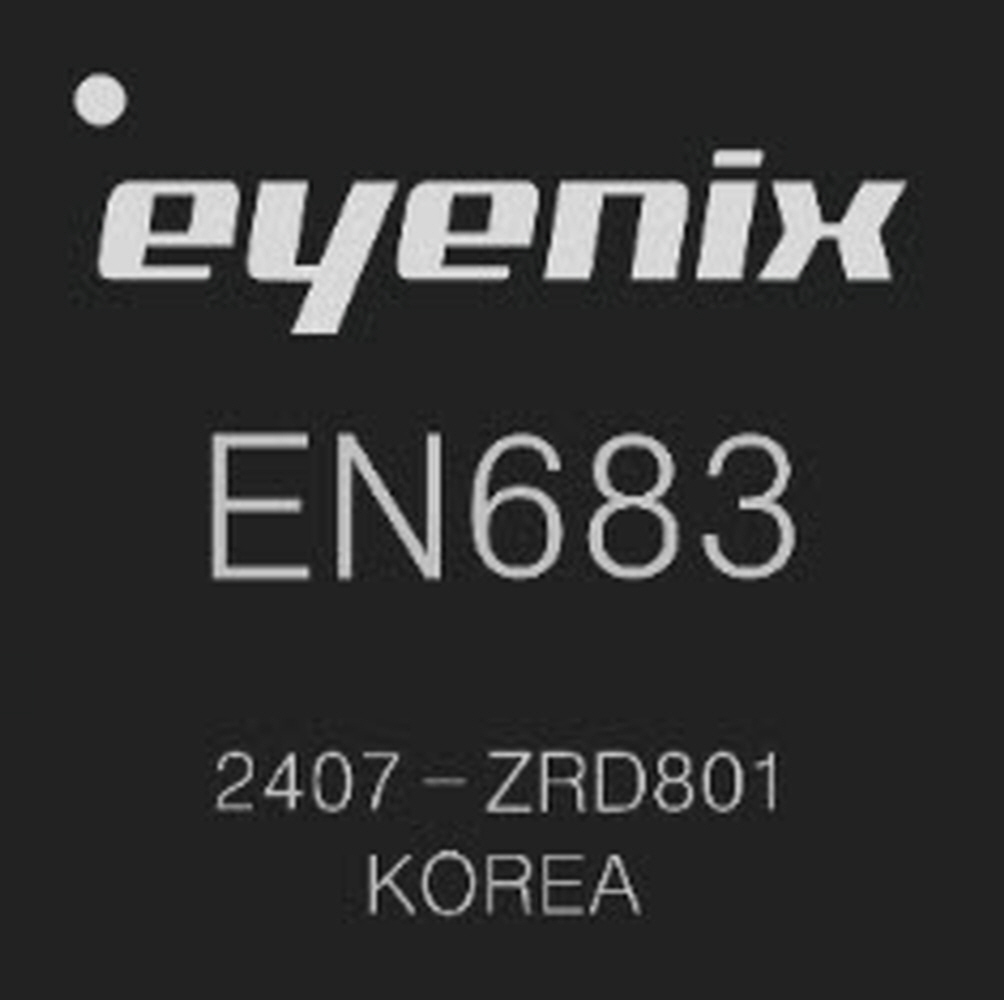

EN683
High performance Consumer product line and IP Camera Processor
The EN683 SoC provides high-performance
consumer product line and IP camera solutions.
The 5th Generation of ISP inside
supports highly advanced image enhancement and noise reduction functions such
as Ultra HDR and 3DNR with improvement of ghost image issue in low light. AI
NPU newly adopted in EN683 can also provide “Edge Enough Capability” of doing
anything on edge device. It also supports a various type of analog and digital
image sensor interfaces to work and control seamlessly in image processing
path. A multi-channel digital input from outside is capable, and supports PIP,
Image blending function as well as LCD Interface (Parallel, SPI), CVBS and
digital outputs.
The EN683 adopts H.265+, H.264+, JPEG, and MJPEG to enable encoding and decoding with multiple resolutions. This chip provides wired/wireless network, SD card, USB storage functions through USB 2.0 MAC, Ethernet MAC (10/100/1000Mbps), and SDIO. The cache-reinforced 64bit Quad-core RISC-V advanced processor is embedded in SoC to leverage performance and power consumption. Market-proven debugger and compile environment are provided for developer’s convenience. The CPU Cores would operate with separate firmware depending on their function.
Block Diagram
